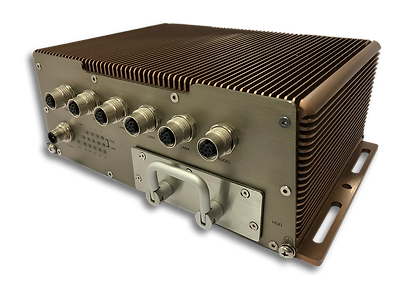

WIRELESS CAMERA RECORDING UNIT
The Wireless Camera Recording Unit (WCRU), encased in a ruggedized casing to meet an IP54 ratings for protection against dust and water, is specially designed for the transportation industry. It meets the vibration, impact and shock resistance requirement under stringent railway standards and is certified for use in railways and trains. Capable of uninterrupted monitoring and recording, and featuring a wide operating temperature of –25°C to +70°C, the WCRU is also ideal for use in police cars, bus and boats.
RFNet takes pride in perfecting the system design. We innovate, design and engineer, pushing performance to its limit. With 2 slots 2.5” storage and connections of up to 18 cameras, the WCRU supports daily operational needs such as live view and playback, from any location, at any time. The WCRU intelligently detects Wi-Fi signal and automatically performs data uploading when the vehicle returns to the terminal. Bringing it further, firmware updates can be automatically done through the backend management system, or schedule a convenient time for the updates to roll in.
The WCRU is engineered to excel in harsh and critical environment, making it one of the most ideal surveillance system on the market.
There are three models of WCRU, namely:
-
WV-WCRU-III-4C (supports up to 4 cameras)
-
WV-WCRU-III-8C (supports up to 8 cameras)
-
WV-WCRU-III-18C (supports up to 18 cameras)
Application Example - 1
Mobile CCTV Surveillance
-
In-Vehicle security surveillance
-
Video and voice recording
-
Instant live view through cellular network (optional)
-
Secured data connections between vehicle and control centre
-
Automatic data upload at depot / station
-
Automatic system fault detection and reporting
-
GPS location tracking (optional)
Application Example - 2
GPS Tracking With Video
-
In vehicle CCTV surveillance
-
E-lock control to prevent unauthorized access to container
-
Tough Tablet for communication and fleet management
-
Immobilizer to prevent unauthorized driver access
-
Panic button, door sensor, alarm and other control
General Connection Diagram
-
The connected cameras will start recording when engine power on. When engine power off, the WCRU will automatically shut down so as not to drain power consumption.
-
Optional GPS feature allows customers to track CCTV footages.
-
GPIO input ports can be configured for event triggering.
